Solid Electrode Cell

The spectroelectrochemical cell enables acquisition of infrared and Raman spectra of working electrode discs (variable sizes, up to 10 mm OD) under flowing solution. Working electrodes available include: Pt, Au, Ag, Cu, glassy carbon, etc. The cell uses a Pt-wire counter electrode and a Ag/AgCl reference electrode. For use with the EZpump peristaltic pump. Adapts to the Harrick Praying MantisTM Diffuse Reflection Accessory.

Testing Equipment

1.6’’; Length: 3”; Width: 2“
Electrode area
variable, up to 0.80 cm2
Window type
CaF2 for IR, quartz for Raman
Tubing fitting
1/16″ barbed, polypropylene
Tubing type
1/16″ ID, chemical-resistant PVC

Use the Operando Solid Electrode Cell with different types of working electrodes (gold, carbon, etc.). Works with our EZstat potentiostat (not included). Cables for alternate potentiostats available upon request.

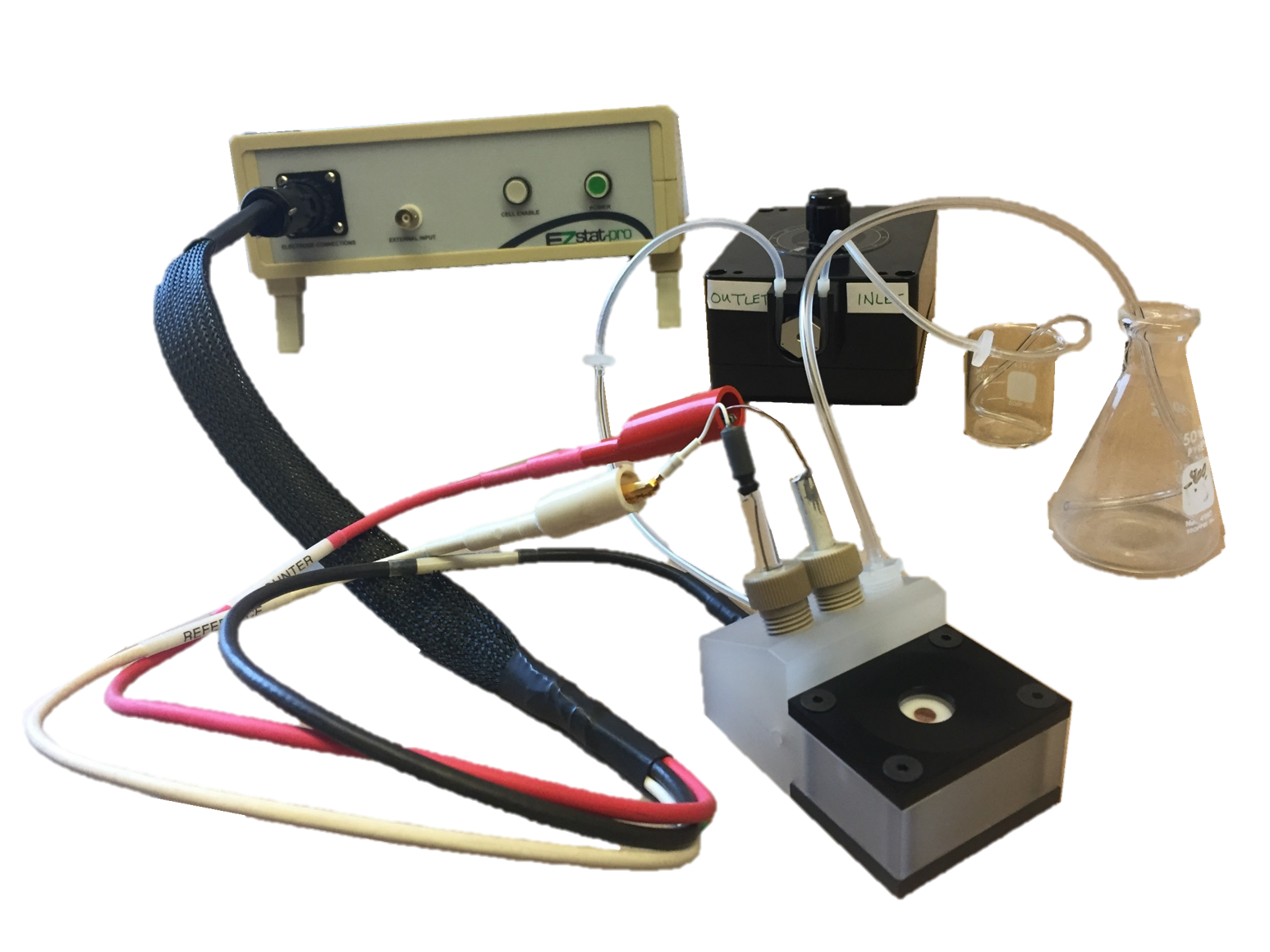

Operando Electrochemical Cell System

Above: Operando Solid Electrode Cell System
